Continuous automatic feeding cold rolling mill

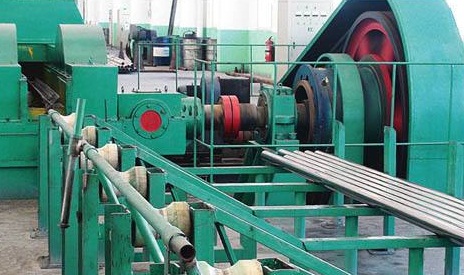

Continuous Automatic Feeding Cold Rolling Mill

LG40LZ cold rolling mill is optimized on the basis of original machine, by adopting automatic feeding and continuous rolling, which saves feeding time and improves working efficiency.

No.	Parameter		LG40LZ
1	Billet	OD (mm)	35-73
2		WT (mm)	1.5-6.5
3		Length (m)	2.5-6.5
4	Finished tube	OD (mm)	20-55
5	Finished tube	WT (mm)	1.2-5.5
6	Framework speed (times/min)		50-100
7	Framework length (mm)		804
8	Feeding length (mm)		2-8
9	Billet rotate angle (°)		57°±2°
10	Roller diameter (mm)		340
11	Main motor type		Z4-200-31/90KW
12	Feeding motor type		MSK101D/12KW
13	Rotate motor type		MSK101D/12KW
14	Outline dimension (L x W x H)(m)		46 x 2.4 x 1.8
15	Total weight (t)		32
16	Feeding type		Auto feeding
